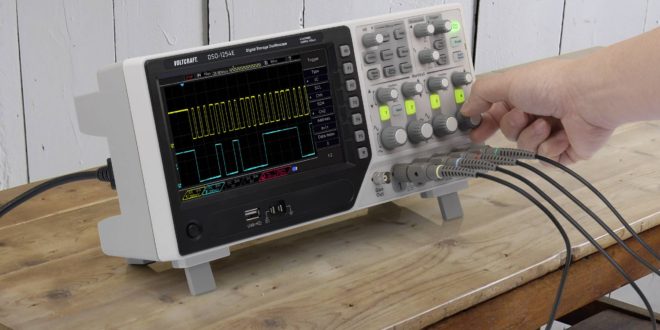

The new four-channel oscilloscopes offer enhanced functionality and are perfectly suited for test and measurement in R&D, laboratories and schools, as well as for maintenance, repair and overhaul (MRO).
Depending on the model, the DSO-1000 series of digital oscilloscopes offers bandwidths of 80, 100, 200, and 250MHz at a sample rate of 1 Gbps, and a memory depth of 64 Kpts per channel.
Additionally, DSO-1xx4F models come with an on-board frequency or function generator.
All members of the DSO-1000 series offer a 17.7 cm (7-inch) color display with 800 x 480 pixel resolution.
Electrical quantities and signals are precisely presented and are clearly visible on the display. Alternatively, measured signals can be sent via a USB cable to a PC.
The digital storage oscilloscopes offer a USB interface for adding additional memory; for example, a USB stick. The USB interface can also be used to call up stored waveforms and to update the DSO firmware.
Automatic measurement
Automatic measurement functions including Fast Fourier Transform (FFT); extensive triggering options; a multilingual, display-based help system as well as included software round off the features of the Voltcraft DSO-1000 oscilloscope series.
Michael Schlagenhaufer, Senior Director, Corporate Purchasing at Conrad Business Supplies, comments on the special features of the new 4-channel DSOs: “Voltcraft’s DSO-1000 series combines numerous measurement functions in one device, making it the universal measurement solution essential in every lab.”
