Multiaxis linear actuator system provides accurate control and saves OEMs time in installation

Linear motion control specialist, Tolomatic, has released a new multiaxis actuator system, providing rigidity and accuracy for OEM machine designs. The two or three-axis Twin Rail Stage (TRS) is an enclosed design, profiled rail actuator system, saving assembly time for OEMs that require multiaxis linear motion.

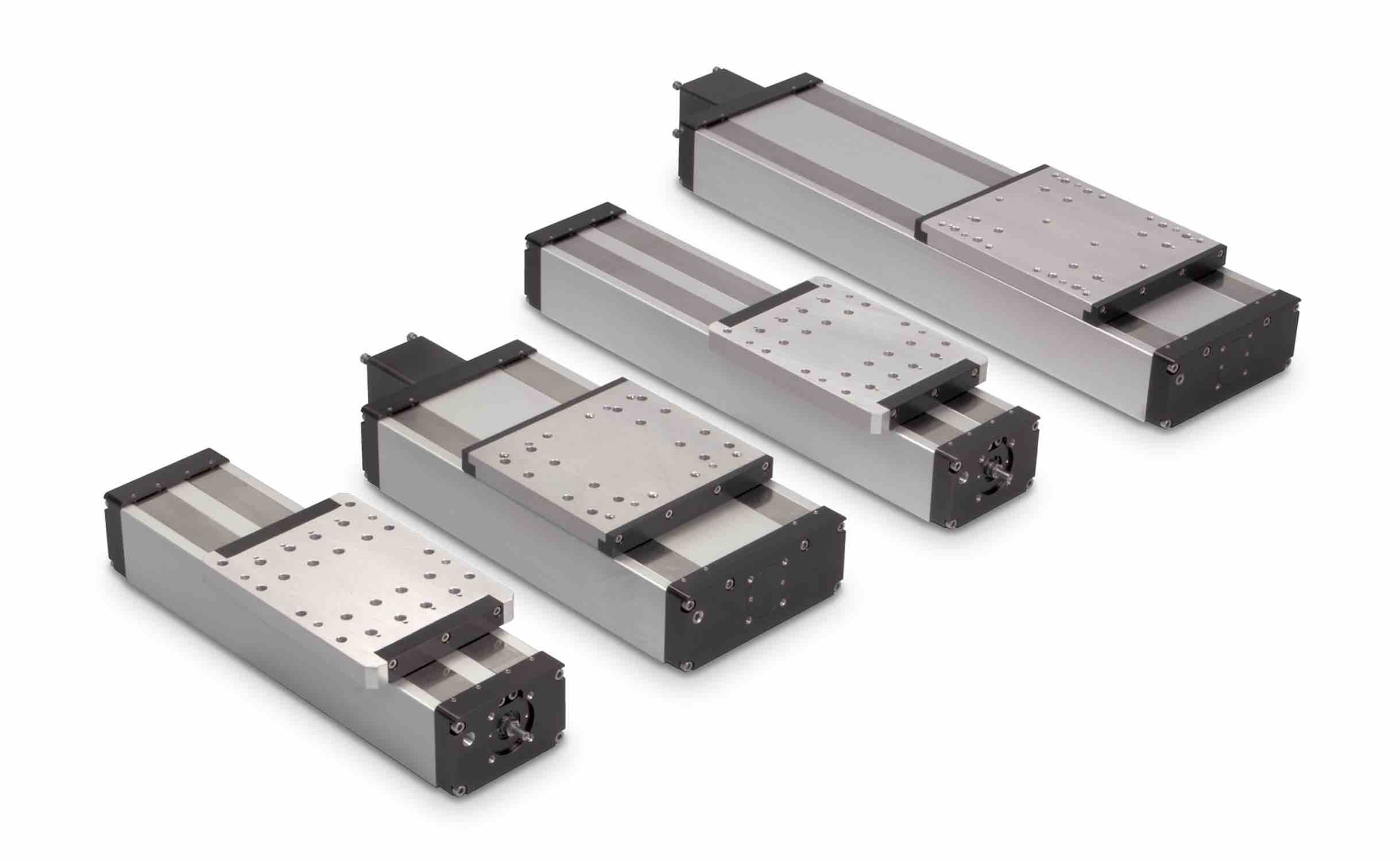

TRS enables precise control with a choice of roller nut or ball nut.

Tolomatic’s new TRS is a multiaxis actuator system for two or three-axis applications. Suited to X, Y, Z axis deployment, the Tolomatic TRS is ideal for OEM design of gantry systems, pick & place applications, and machine centres.

Specifically for metal machining, actuators must provide a secure hold on workpieces and control them with precision and stability to achieve accurate drilling and cutting. Actuator control also has to prevent deflection, which would cause the cutting axis to move, resulting in an imprecise finish. To overcome these challenges, the TRS system has been designed with high rigidity and delivers accurate control.

The TRS actuator’s extruded body ensures resistance to flexing and can handle loads up to 6 kN. Available with a strokesup to750mm or 1,100mm depending on frame size, the actuator system is suitable for maximum bending moments up to 294 Nm. A choice of screw technologies gives precision control, including a roller nut that provides accuracy of ± 0.0102mm/300mm, as well as a cost-efficient ball nut that achieves accuracy of ± 0.051mm/300mm.

Applications such as metal machining require high durability, and the TRS actuator system has been designed with Tolomatic’s Endurance Technology principle to provide extended service life. This includes stainless steel dust bands that keep contaminants from entering the actuator interior, protecting components for reduced maintenance and increased uptime. Similarly, breather/purge ports are available as standard and can be leveraged to provide positive pressure with airlines and filters, ensuring that contaminants do not enter the interior of the actuator. Meanwhile, the wiper and seal are integrated with the carrier design to enable clean and smooth operation.

Pre-assembly by Tolomatic in multiaxis configurations saves the OEM time in assembly and installation. The design means that the TRS system can be mounted carrier to carrier with no additional mounting plates. Optional slots and clamps also provide flexibility and added security for mounting in addition to the dowel pin holes and threaded mounting holes that are available as standard.

The TRS multiaxis actuator system can be used with your choice of motor. Thanks to Tolomatic’s ‘Your motor here’ specification option, the OEM can inform of their motor and gearbox choice, with in-line or reverse parallel mounting, and the TRS actuator ships with the proper mounting hardware.

Tolomatic actuators are distributed in the UK by INMOCO.
