Multichannel GHz Digitisers with up to 12 channels

Spectrum Instrumentation’s new flagship digitisers have 12-bit resolution and a maximum of 6 channels at 10 GS/s or 12 channels at 5 GS/s acquisition speed.

The new DN6.33x digitisers belong to the company’s Netbox series, an easy-to-use instrument line that requires only an Ethernet cable to be controlled from any PC, laptop, or network.

A comprehensive software package and a number of hardware features make them ideal for automated testing applications, capturing signals on multiple, perfectly synchronised inputs. With 15 new variants, Spectrum now offers a total of 94 different digitiser Netboxes, ranging from 5 MS/s to an ultrafast 10 GS/s sampling speed.

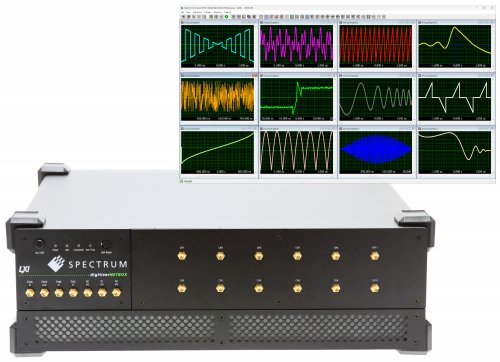

The DN6.33x Digitisers with 12-bit offer up to 6 channels with 10 GS/s or up to 12 channels with 5 GS/s

Each channel of the new DN6.33x digitizers features a 12-bit ADC with sampling rates of 3.2, 6.4, or 10 GS/s, and related analog bandwidths of 1, 2, or 3 GHz. Models are available with 4, 6, 8, 10, or 12 channels, giving users flexibility without overspending on unneeded performance. If only 1 or 2 channels are required, the smaller DN2.33x series is available.

Key hardware features are:

• Perfect synchronous sampling across all channels
• Four independent programmable input ranges (±200mV to ±2.5V) per channel with programmable offset, on-board calibration, and precise timing alignment
• The standard memory allows 200ms capture duration at full speed, expandable to 800ms
• Front panel connectors for external clocks, triggers, and digital I/O are standard

Flexible acquisition modes – like transient, multiple, and optional block averaging – combine with advanced trigger capabilities to allow the precise capture of rare or complex events. Each trigger has its own timestamp, making it possible to time between acquisitions that may be separated by hours, or just fractions of a microsecond.

All units ship together with the powerful SBench 6 Professional software for acquisition, display, analysis and documentation. SBench 6 handles large data files with ease, offers a wide choice of time and frequency display modes and provides an easy way to control Netbox instruments. When embedding a unit into automated testing systems, developers can create their own programs using the free SDKs, compatible with C++, Python, MATLAB, LabVIEW, and more. Optional accessories include a high-speed pulse generator with four programmable outputs, and 19-in rack mounting kits.
