Multiplexers provide reliability in automotive applications

Nexperia announces the latest addition to its portfolio of AEC-Q100 (grade 1) qualified devices that deliver the reliability required for demanding automotive applications. The NMUX27518-Q100 is a bidirectional 6-channel 2:1 multiplexer, making it ideal for enabling memory expansion via a qSPI port in safety-critical in-vehicle applications like the advanced driver assistance systems (ADAS) domain controller, the automotive head unit and telematics control units. The NMUX27518 is a standard version of this switch that can also be used for audio and video signal routing in consumer and enterprise applications like notebooks, tablets, motherboards and rack servers.

The NMUX27518 and NMUX27518-Q100 are the industry’s first multiplexers to operate from an extended 1.08V to 3.63V voltage range. Furthermore, they can accommodate both digital and analog signals and can transmit signals up to the supply voltage level (VCC) in either direction. Two control pins, which simultaneously control three 1:2 multiplexers, are compatible with 1.8V logic thresholds and are also backward compatible with 2.5V and 3.3V logic thresholds, while unused outputs can be placed in a high-impedance state. The 500MHz bandwidth of these switches is twice that of similar competing devices to better preserve fast rise and fall times. In addition, low port skew (150ps typical) between channels helps with optimizing setup and hold times.

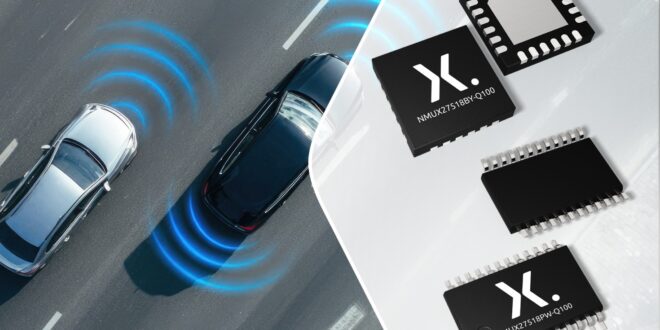

The NMUX27518 and NMUX27518-Q100 come in a plastic thin shrink small outline package with 24 leads (TSSOP24) that has a body width of only 4.4mm. They are also available in a plastic thermal enhanced leadless very thin quad flat package with 24 terminals (HWQFN24) that have 0.5 mm pitch and 4 mm × 4 mm × 0.75 mm body dimensions. Both devices can operate at temperatures ranging between -40 °C and +125 °C.
