Powering new coral reef growth

CCell’s reef growing system is based on the electrolysis of seawater to deposit calcium carbonate (limestone) on large steel frames which function as anodes and cathodes (electrodes) and to give the new reef its early structure.

The technique means that instead of hundreds of years, it takes just five years to produce incredibly strong limestone rock on which coral can grow. CCell also uses renewable energy sources such as solar, wind and wave energy to power their reef growing systems.

This image has an empty alt attribute; its file name is V377-Image-ccell-biorock-3Dvision.jpg

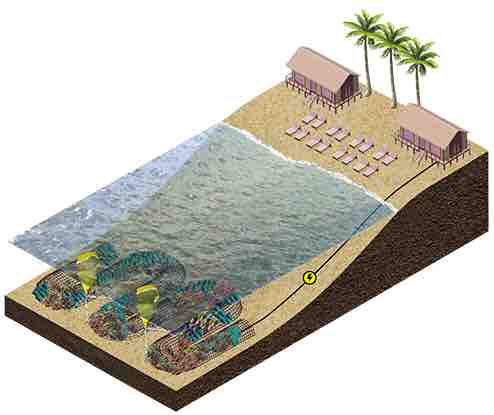

6m sections of reef are positioned manually, anchored adjacent to the wave paddle and then connected up to the power supply. As soon as the reef is electrified, the limestone rock starts to form around the rebar

All of these renewable power sources have widely varying output voltages due to environmental conditions; a major problem for the electrolysis process.

The limestone structure on which coral grows must be grown at an optimum rate, without impurities and with a strong molecular structure.

The electrolysis process must be precise or nothing will grow, or the limestone will not be tenable. The power delivery network must therefore have a high degree of control, accuracy and be able to operate over wide ranging and challenging conditions.

Power delivery network

Faced with a widely varying input voltage specification and the need to tightly regulate the potential difference (electric field) between the electrodes within a ‘goldilocks zone’ of 1.2V and 4V, to drive a precisely calculated current through the seawater, Vicor recommended its Factorized Power Architecture or FPA.

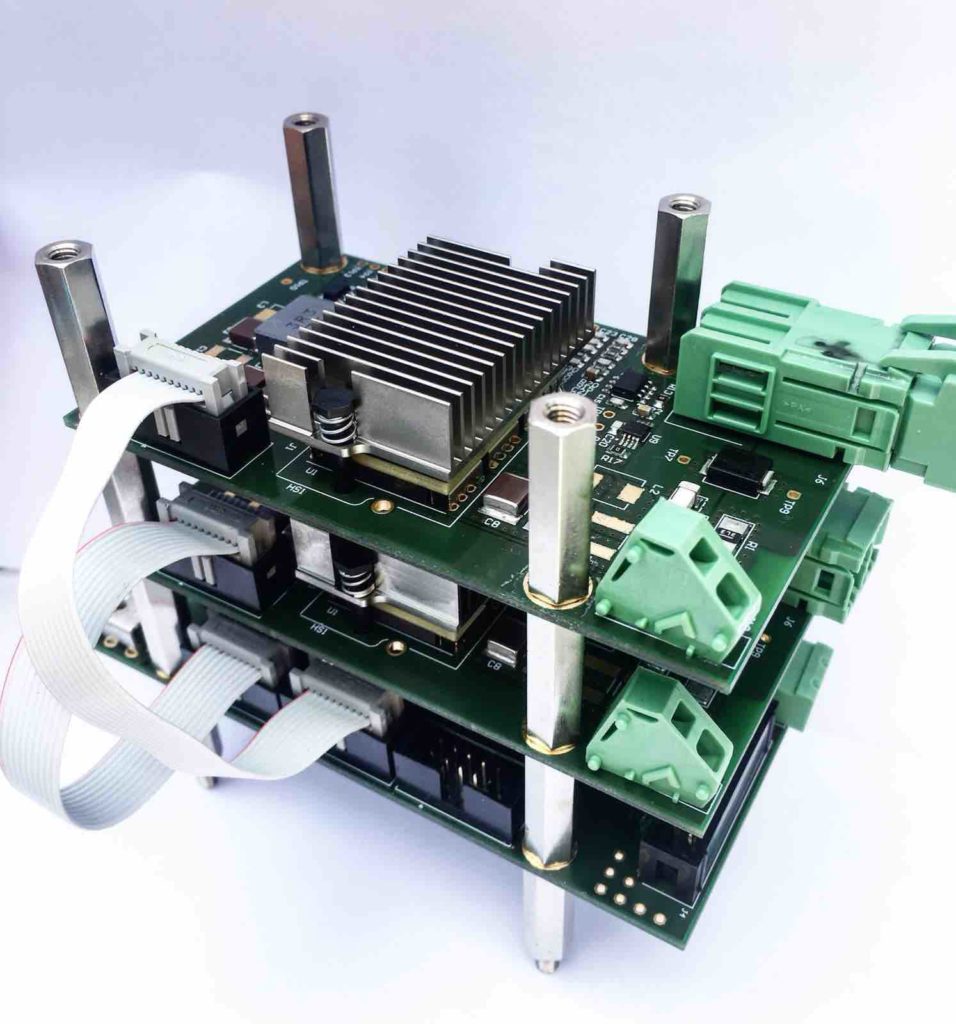

By factorising the DC-DC function into two modules, a PRM regulator and a VTM current multiplier, the power delivery network can be optimised for regulation and conversion.

This image has an empty alt attribute; its file name is V377-Image-composite-paddle_light-1024×959.jpg

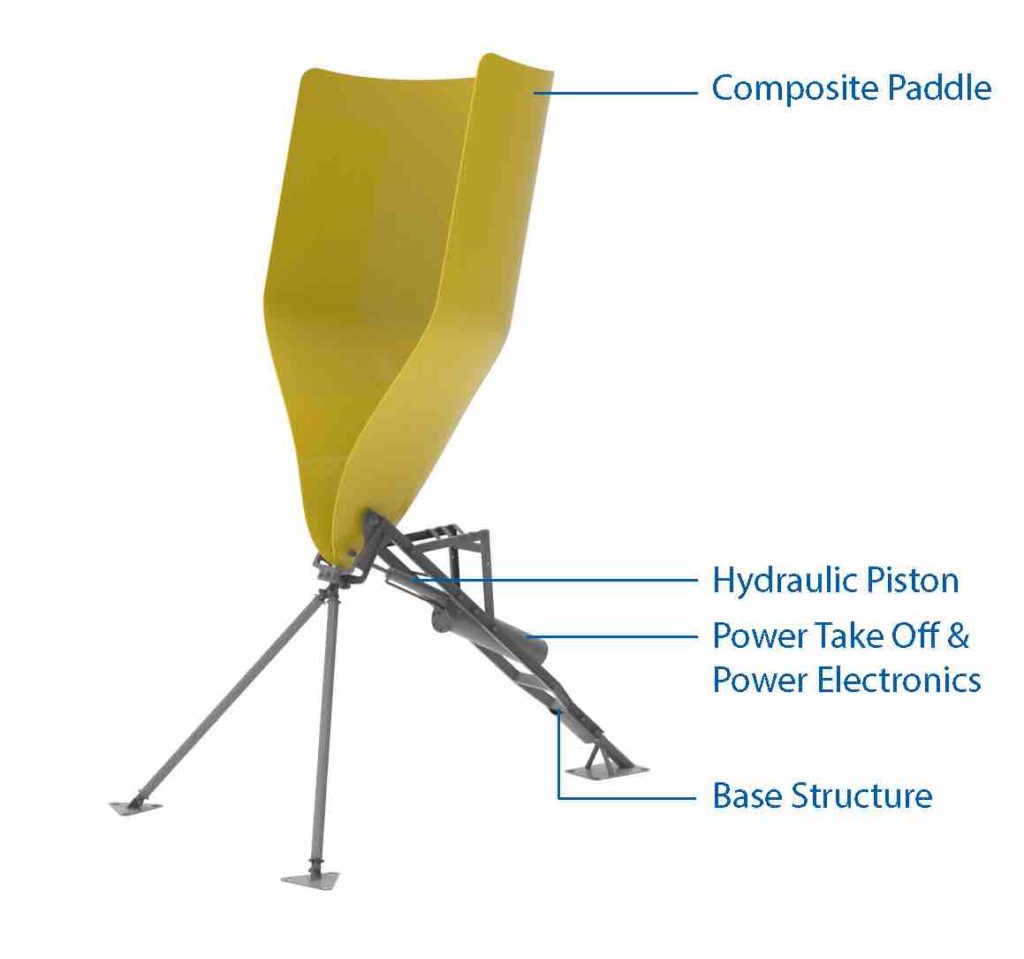

The wave-energy converter, consisting of a composite paddle hinged at the seabed that drives a hydraulic system to generate electricity. The curve of the paddle is naturally strong and able to withstand extreme conditions, while composite materials make the paddle light-weight and durable

The PRM buck boost regulator operates over a wide input voltage range and has a zero voltage switching (ZVS) topology, delivering very high efficiency, power density.

In addition, PRMs are easily paralleled for higher power.

The VTM is a fixed ratio (non-regulating) resonant converter with high current density. Working seamlessly together, the PRM tightly regulates the voltage required for the reef and the VTM handles the down conversion and current delivery to the electrodes.

“This unique and complicated application has many constantly changing variables needing precise measurement and control to enable accelerated reef growth” said Will Bateman, the CEO at CCell. “Using Vicor’s FPA we now have a high performing design that we believe is going to make enormous improvements to ecosystems and communities across the entire planet.”

CCell is dedicated to growing reefs on a global scale and is currently preparing to create a new reef in Mexico that will be 200m in length.
