PULS 8-port DIN-Rail PoE injectors
Available with integrated premium power supply or as stand-alone device

PULS 8-port DIN-Rail PoE injectors

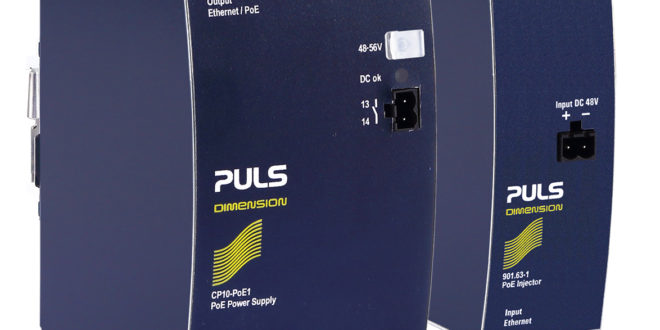

DIN-Rail power supply specialist PULS Power announces the availability of two new high quality 8-port Power over Ethernet (PoE) power injectors available with either an integrated premium power supply or as stand-alone device

With up to 8 ports and an integrated premium power supply at just 77mm wide, the AC input injector can do what normally requires a combination of at least two devices, reducing costs and space required on the DIN Rail.



For systems with an existing system power supply the PULS stand-alone DC input PoE injection device is just 39mm wide offering designers’ maximum space savings.

Automatic device detection

Using plug-and-play automatic device detection and classification, together with proven DIN rail mounting, PULS PoE Injectors are user friendly and easy to install.

As layer-2 switching methodology is not required, real-time and security critical applications can be powered with the highest levels of confidence.

The new PULS PoE devices provide high performance capacity with PoE+ and Gigabit Ethernet and are of a robust and flexible design, making these injectors suitable for a variety of applications worldwide including; industrial process and factory automation, medical and health care, smart offices, VoIP and telecoms, surveillance, airports and Factory 4.0 infrastructure.

PULS DIN rail PoE Injectors are equipped with up to 8 ports and each port delivers a power of 30W (25.5W at load) and is compliant to IEEE Standard 802.3at. This enables PoE communication with a high number of devices using just one PoE Injector.

System designers can specify a version with or without built in power supply depending on their application and variants with less than 8 ports are available on request.

Standard DIN rail mounting allows an simple and fast installation of the PULS PoE Injector in customers’ application. No complicated setup or integration into network is required.

Key features include high efficiency up to 95.5%, advanced inrush current limitation, active power factor correction small size of just 117x39x128mm for PoE Injector (DC input), 117x77x131mm PoE Injector (AC input), operational temperature range between -45°C to +85°C PoE Injector (DC input) and -25°C to +70°C PoE Injector (AC input)
