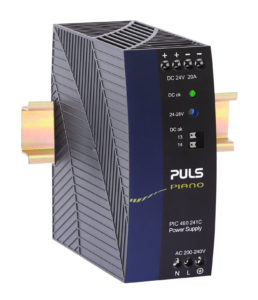

An extension of the market-leading PIANO-Series this cost-oriented power supply is just 49mm wide freeing-up maximum rail space for functional system modules.
The PIC480.241C offers high efficiency, up to 95.7% at 230V at full load, and extreme reliability with an MTBF of 482.000h, to IEC 61709, at 40°C.
The mechanically robust housing is made of a high-grade shock-resistant polycarbonate reinforced moulded material, which permits the units to be used in ambient temperatures up to +70°C.
The PIC480.241C delivers full power over the temperature range of -10°C to +55°C and features a 3-year warranty.
The PIC480.241C features input transient protection, output over-voltage protection, over-temperature protection (output shut-down with automatic restart) and electronic output protection against overload, no-load and short-circuits.
As most typical industrial applications do not require multiple mains input voltages, the implementation of a regional input voltage range (200-240VAC) simplifies the circuitry and has significant advantages for reliability, efficiency and cost.
The addition of a DC-OK signal, with optional isolated contacts, makes the unit suitable for many industrial applications including: instrumentation, process, automation and other critical applications where preventive function monitoring can help to avoid long downtimes or damage.
Marco van der Linden, UK Country Manager, for PULS, comments: “DIN-Rail power supplies offer system designers and installers’ uncomplicated assembly of panels and control cabinets. Our Piano range provide simple, reliable, compact and cost-effective system power solutions. They offer many advantages over chassis mounted types including ease of installation, the ability to upgrade in the event of a system change and simplicity of installation and maintenance.”
