The CleverReader stationary 1-D/2-D code reader detects codes with maximum reliability and allows flexible configuration. It is capable of high-speed reading and DPM code reading. Simple integration and intuitive operation make it thea solution in areas such as packaging, logistics, and microelectronics.
The sensor technology reliably reads all common 1-D and 2-D codes, even on reflective surfaces and displays. With its compact design, an RS-232 interface, and a 24V/5V converter cable with trigger connection, it is easy and flexible to integrate. Parameterisation is performed conveniently using control codes on the device or on the intuitive graphical user interface.
The output string can be adapted to feed the reading result directly into the ERP system. Additional functions such as automatic error image memory, match code, and various reading modes extend the range of applications. The high-performance version VOI1100 recognises codes in motion up to 3.5m/s as well as directly applied codes (Direct Part Marking, DPM); the basic version VOI1000 reads reliably in static applications.

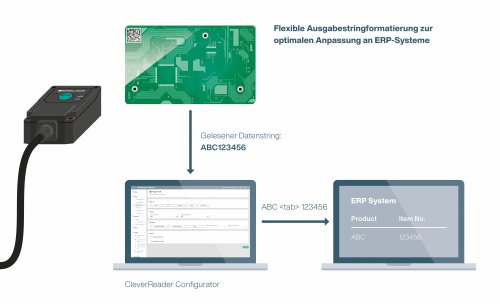

The output string can be formatted to match the ERP system
