Offline programming for laser welding cells

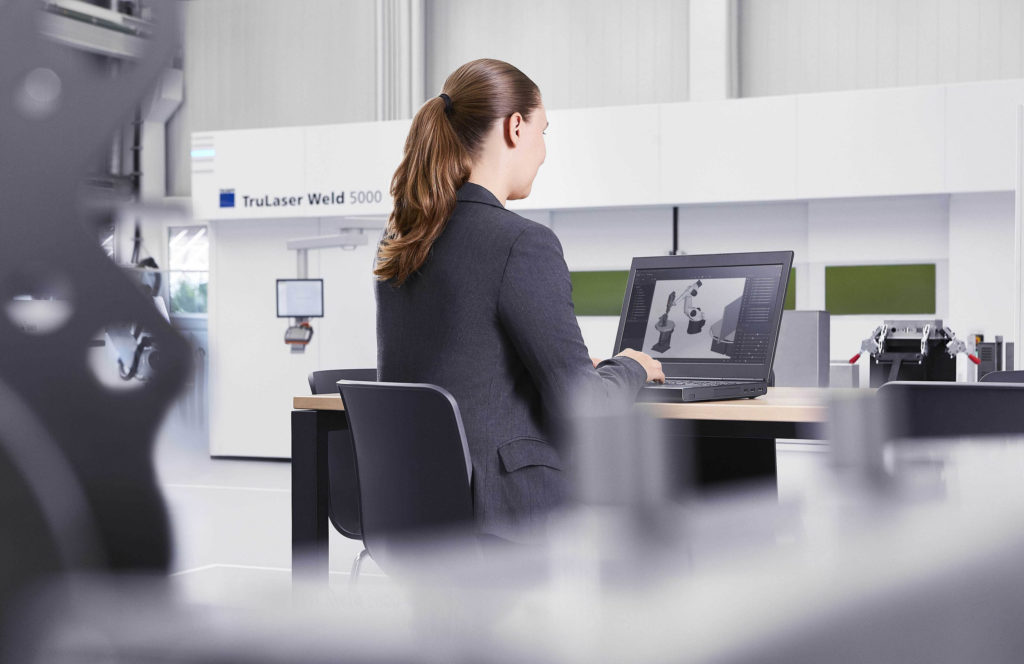

The new TruTops Weld programming software allows users to create welding programs offline on a computer while the laser welding cell is producing parts.

They then transfer the program to the machine where the TeachLine sensor system automatically adjusts it to match the actual position of the part. This minimises the need for teach-in processes.

Trumpf’s new TruTops Weld programming software has been specifically designed to work with the TruLaser Weld 5000 laser welding cell.

Offering an intuitive, user-friendly interface, the software incorporates a broad range of Trumpf’s accumulated technological expertise, including welding parameters and information on processing angles. It also integrates all the TruLaser Weld functions such as the rotary module and the TeachLine sensor system.

TruTops Weld is a valuable addition to any facility. It increases machine availability by allowing users to create welding programs on a computer rather than on the laser welding cell. That means the machine can keep producing parts during programming and it divides up the workload more efficiently between the machine operator and the programmer. TruTops Weld also makes it much faster to create programs.

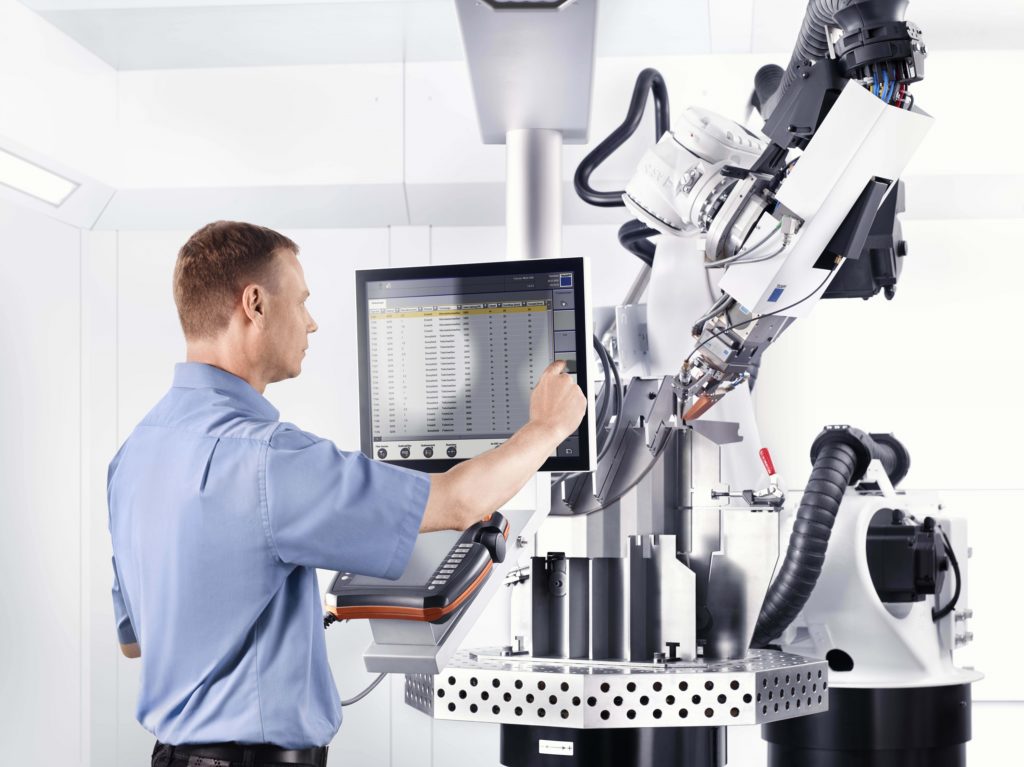

With teach-in programming, machine operators have to individually program every point the robot will travel to during processing.

TruTops Weld calculates these points on the robot’s path automatically. It also offers a number of other software features that make life easier for machine operators.

A welding program in four steps

The new programming process consists of four steps. The first step focuses on the part: the programmer defines the points to be welded by clicking the corresponding part edges.

The welding parameters can then be selected from a comprehensive database.

Alternatively, programmers can choose to use parameters they have calculated themselves.  At this early stage, the software automatically calculates the paths of motion and creates a preliminary program.

TruTops Weld then finalises the program in what is known as ‘system mode’. This mode enables the user to virtually place the part on the positioner inside the laser welding cell.

TruTops Weld detects any potential collisions and helps the user to find a position and path of motion that the robot can follow without meeting any obstructions. This simulation is particularly helpful for complex parts.

Finally, the programmer transfers the program to the welding cell. The TeachLine sensor system then checks the exact position of the part and compares this information to the simulation.

If TeachLine identifies any discrepancies, it automatically adjusts the program accordingly. Users still have the option of carrying out a conventional teach-in process.
