Termination connectors reduce cable assembly time

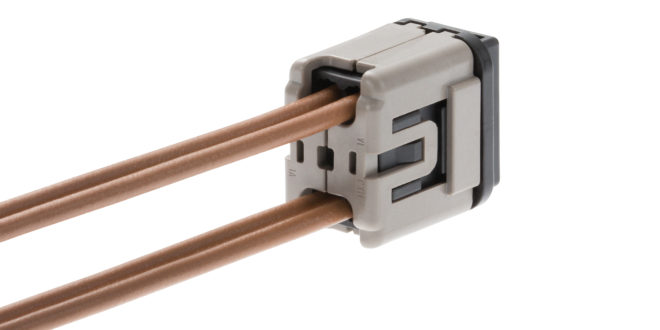

RS Components (RS) has announced availability of the Molex MUO 2.5 series of terminal connectors, which have been designed to replace closed-end (CE) terminals and thereby reduce harness-assembly lead times, as well as improving quality, reliability and processing.

The MUO 2.5 connectors can simplify the termination process by eliminating tangled wires, reducing the number of quality issues and potentially even negating the need for extra inspections.



Typical applications that can benefit from these devices include equipment such as air conditioners, fan heaters, floor-heating and HVAC systems, as well as other appliances such as refrigerators and washing machines, or anywhere terminations are required.

Closed-end termination of connectors

The traditional closed-end termination of connectors typically requires skilled workers and needs extra steps for crimping. Improper crimping is a risk, and extra inspection of the crimp area is required, as this kind of termination can be unstable.

Crimping also requires manual sorting, which may lead to damage of the assembly or causation of other quality issues.

Closed-end terminations are typically done as an early step in the assembly process, which can significantly lengthen lead times as well as increasing the cost of stocking.

However, the MUO 2.5 termination process delivers a high level of manufacturing flexibility, as it can be set up at any stage of the production workflow.

Features of the MUO 2.5 connectors include: two separated retainers to protect cables and secure the terminal position, which also prevent wire entanglement and eliminate electrical-shock hazards; and a simple water-exhaust function that is designed to prevent water from permeating inside.

The Molex MUO 2.5 termination connectors are shipping now from RS Components in the EMEA and Asia Pacific regions.
