Thin film conversion coatings are designed to enhance multi-metal parts

Henkel now offers a number of new generation solutions to metal pre-treatment processes.

BONDERITE M-NT thin film conversion coatings are designed to enhance multi-metal parts (steel, iron, aluminium, zinc) and overcome the issues associated with traditional phosphating, such as high energy costs, excessive sludge and scale generation, environmental and health and safety concerns.



In contrast, BONDERITE M-NT coatings, which are much thinner than traditional zinc or iron phosphates, offer a 10-30% process cost saving, while further advantages include the absence of phosphate or nickel salts, and no polymers in the conversion bath.

Henkel can provide products such as BONDERITE M-NT 1200, BONDERITE M-NT 20120, BONDERITE M-NT 2011 and BONDERITE M-NT 40042 to suit different pre-treatment processes requiring various numbers of steps.

To illustrate the potential benefits available, a traditional zinc phosphating process comprises seven steps: cleaning, rinse, conditioner/activator, phosphating at 55°C, rinse, post-rinse and DI (deionised water) rinse.

Using BONDERITE M-NT 1200, however, this can be reduced to just five steps: cleaning, water rinse, DI rinse, BONDERITE M-NT 1200 thin film conversion coating, and a final DI rinse. (The five steps are dependent on a high level of cleaning; sometimes two cleaning stages will be required, meaning a minimum of six stages). In addition, conversion coating takes place at ambient temperature, so there is no need to use energy heating the bath.

In a customer case study, a UK painting subcontractor switched from zinc phosphating to thin film BONDERITE M-NT 1200, achieving a safe and reliable process as a result of easy bath controls and fewer steps to monitor.

Not only did the company reduce its energy costs, but maintenance was also reduced considerably as very little sludge or scale is produced. Furthermore, the high-performance product passed the 1000-hour neutral salt spray test.

Similar success has been witnessed at a French manufacturer of agricultural plant that is now using zirconium-based BONDERITE M-NT 20120 in place of a five-step phosphating process.

Along with reduced energy consumption, the plant is experiencing excellent paint adhesion and no flash-rusting.

The latter creates a powdery layer that lowers paint adhesion and was previously causing a problem for the plant.

Also in France, outdoor furniture manufacturer, Fermob, is exploiting the benefits of BONDERITE M-NT 20120 to protect its products against corrosion while at the same time minimising environmental impact.

Fermob processes some 3200 tonnes of steel and aluminium every year at its Thoissey plant. With a thickness of only 20 to 30nm, the nano-ceramic BONDERITE M-NT 20120 coating is much thinner than the layer achievable with conventional iron phosphating, which is typically 500 to 1000nm.

What’s more, paint adhesion and corrosion protection are substantially better – salt spray tests show that switching to BONDERITE M-NT 20120 improves anti-corrosion performance by about 30%.

A further product of interest is BONDERITE M-NT 2011, an advanced pre-treatment system that provides a nano-ceramic coating to metal substrates, and is especially formulated for use on steel surfaces, aluminium and zinc.

Totally free of phosphorus, COD, BOD and heavy metals, the product operates at room temperature and offers a high level of pre-treatment performance. It needs fewer chemical steps and reduces power consumption, water and space requirements in plants.

As a simple solution for short lines of three or four pre-treatment steps, BONDERITE M-NT 40042 cleans and deposits a conversion coating simultaneously (in the same bath). A Finnish manufacturer operating in the white goods sector is among those already benefiting from this innovation.

Producing refrigerated food shelves, the facility has reduced process costs by 30%, solved phosphate pollution issues in its wastewater and improved mechanical and corrosion-protection performance.

Finally, a further Henkel innovation is BONDERITE no-rinse passivation, which offers another way for plants to improve performance on short lines. This turnkey solution comprises a combination of chemistry and equipment, where instead of a conventional tank there is a ring of nozzles between stages that blows a mist on the parts.

The process is not only highly flexible, but produces very few drips and ensures there is always fresh chemistry misted on the components.

For any plant looking to improve its metal pre-treatment processes, BONDERITE M-NT technology from Henkel can deliver clear competitive advantages.

Free technical advice

Running a high performance pre-treatment process is a challenge, which is why Henkel offers free technical advice for new and existing lines.

This advice helps customers review current processes in order to gain efficiencies and potentially add value to their end products.

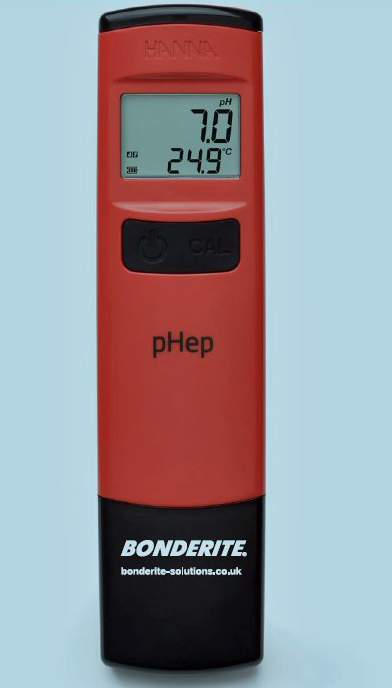

As part of this, Henkel is offering the opportunity of a free, no obligation line audit in exchange for a free Hanna PH Tester.

Henkel’s qualified experts could recommend new technologies to replace existing metal pre-treatment or give advice for new lines yet to exist.

Simply get in touch HERE henkel-adhesives.uk@henkel.com and one of its technical experts will carry out a full line audit. Afterwards, participants (one per customer subject to availability), will be sent a Hanna Instruments H198107 PH Tester (worth £65), free of charge.

The closing date for this offer is the 28th September 2018 so don’t delay in applying.

After care is pivotal in the production process for success. The Henkel Technical Service Team will assist and train customers to ensure that their functional coating line, with its own unique parameters, is performing to the highest standards.
