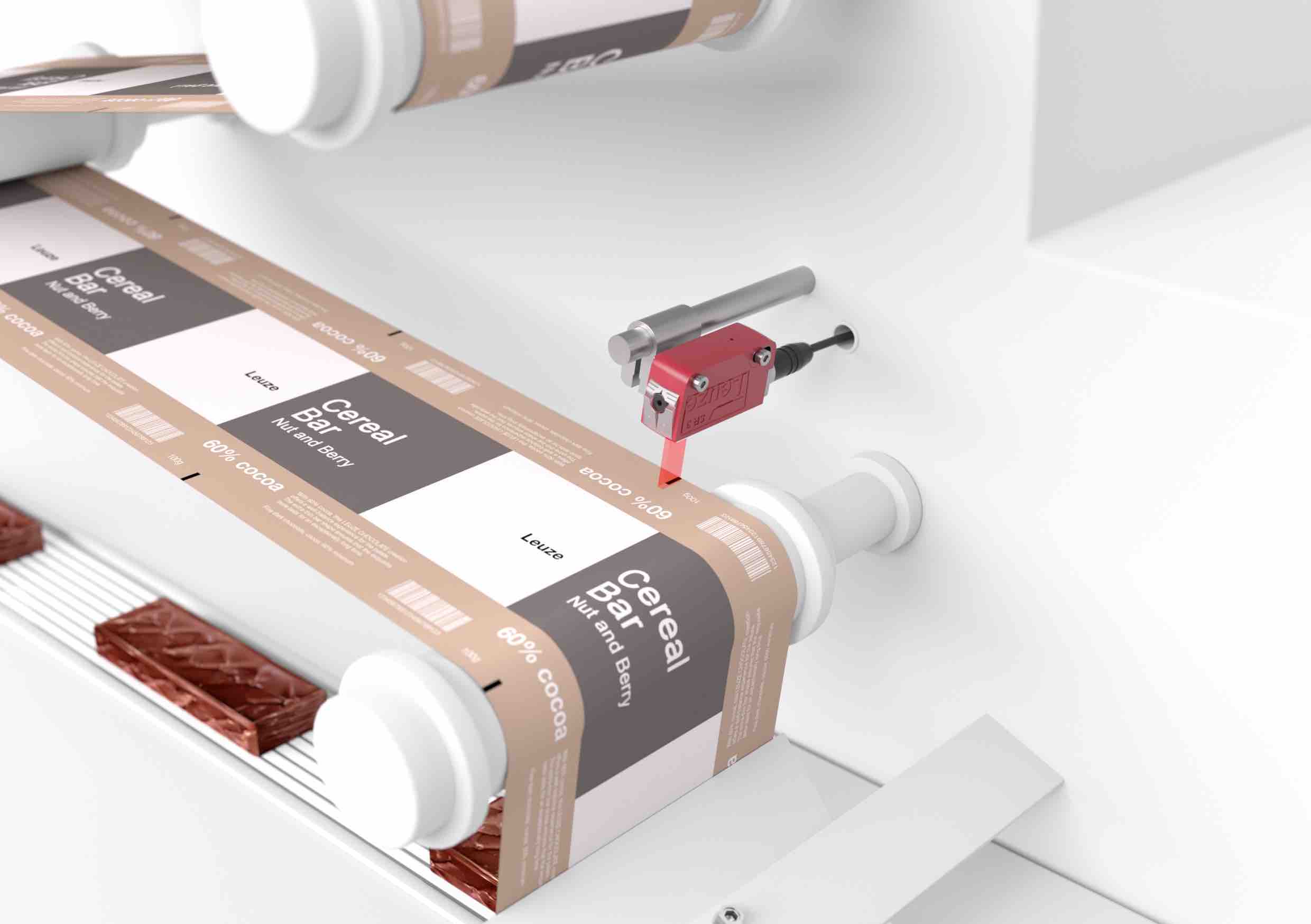

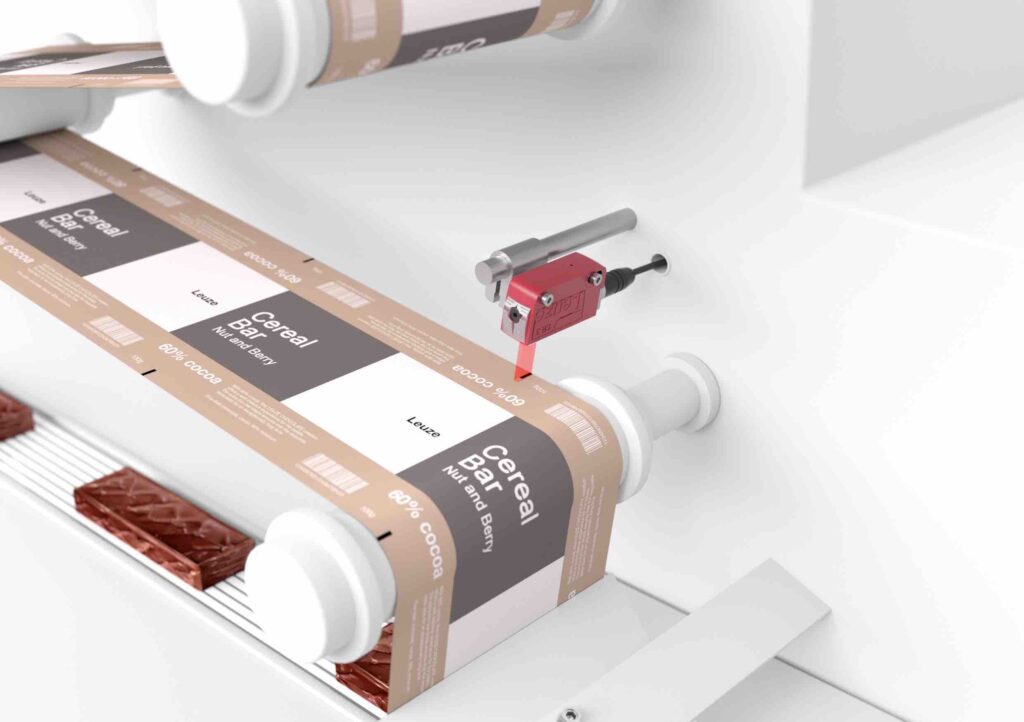

The new KRT 3C contrast sensor from Leuze can be flexibly integrated into packaging processes thanks to its multicolour capability and small size.
With the KRT 3C contrast sensor, Leuze is presenting the smallest contrast sensor it has ever made for the packaging industry. Plant operators benefit from a compact device that can be used in many different ways.
The KRT 3C detects reliably and position accurately even if there are only small contrast differences and with glossy surfaces or highly reflective materials. This is possible by the multicolour functionality: red, green, and blue light as well as white and laser red light will not allow any object or printed label to pass through unnoticed. This allows users to select the right light source for any material and contrast mark colour for their packaging and labelling processes.
The KRT 3C detects contrasts very precisely and reliably and with a short response time of only 50μs (laser: 125μs) and minimal signal jitter. This helps to achieve optimal machine throughput. An advantage in small spaces: With its small dimensions of 11 x 32 x 17mm, the sensor is designed for tight installation spaces. This means it can be fitted almost anywhere. Users can easily set up the KRT 3C via the integrated IO-Link interface. Changes are also made quickly when changing product formats.
The housing is robus. It meets degrees of protection IP67 and IP69K. The KRT 3C is also ECOLAB-certified. So it can even handle aggressive cleaning agents.
