Coreless filter bag offers excellent dirt-holding capacity

Eaton recently expanded its high-performance and versatile coreless filter bag offering with the new MAX-LOAD coreless filter bag.

This new filter bag range offers an excellent dirt-holding capacity and is suitable for applications involving high retention ratings, such as water treatment, filtration of bulk and fine chemicals or metal cleaning.

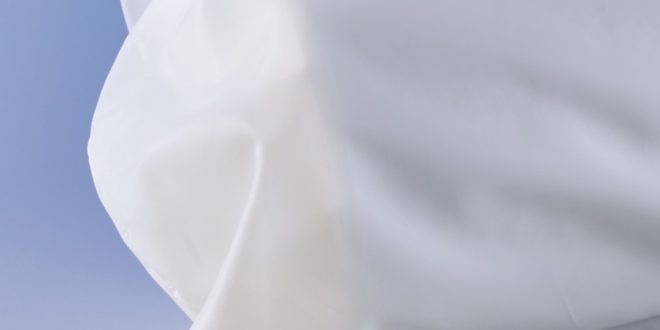

The MAX-LOAD coreless filter bags are made of melt-blown polypropylene or polyester.

Protective shield

The rigid, graduated material structure has a depth of over 18mm. It also forms a protective shield against hard, metallic, as well as deformable, gel-like contaminants.

For widely varying operating conditions, reliability can be increased through an outer mesh cover of polyamide 6.6 with a retention of 10μm.

Additional features and benefits of MAX-LOAD coreless filter bags include:

* High bypass security through patented SENTINEL seal ring

* Robust, bypass-free and seamless construction through thermobonded endcaps
* Gradual loading through graded media structure
* Maximum limited fiber migration through seamless spunbond cover

MAX-LOAD coreless filter bags are available in sizes 01 and 02 with retention ratings from 1 to 150µm and fit into all Eaton standard bag filter housings.

MAX-LOAD filter bags can be used in Eaton TOPLINE single bag filter housings and MAXILINE multi-bag filter housings.

They are designed for a large variety of applications and feature a side inlet, flow through top for optimum sealing of the filter bag, easy filter bag change-outs and reduce product loss to a minimum.

The MAX-LOAD filter bag offering can also be equipped with a powerful magnetic bar to remove ferritic particles.
