Ball transfer units are durable and resistant to corrosion

Standard parts and components supplier, WDS Components LTD, has extended its range of ball transfer units with a new range of medium-duty models.

Used on conveyor systems, WDS’ new units are machined rather than pressed, enabling them to support and move heavier loads weighing up to 350kg. Commonly referred to as Euro-style, the designs are available in stainless as well as carbon steel, making them highly durable and resistant to corrosion, enabling long-life use.

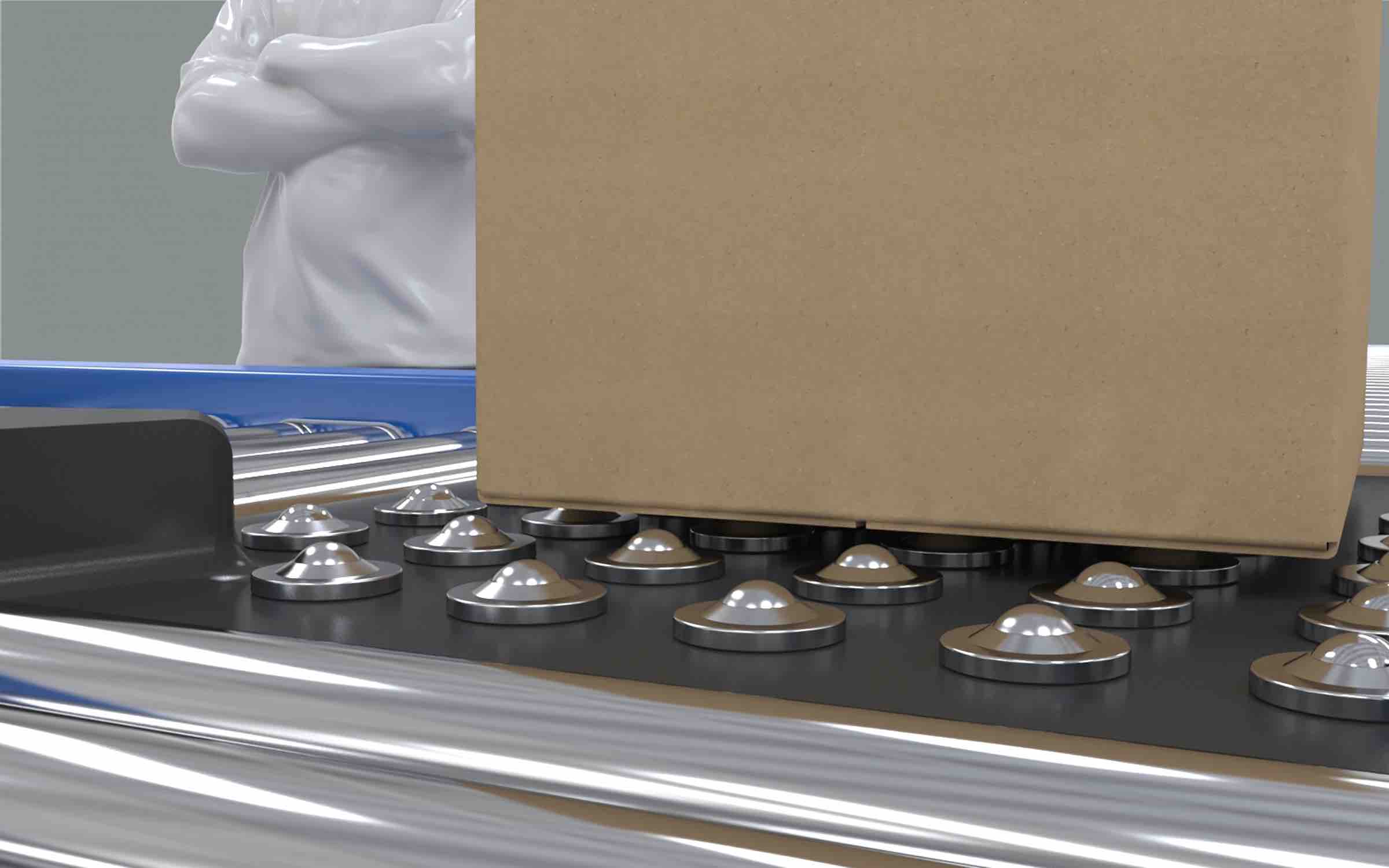

With omnidirectional movement, ball transfer units comprise a recessed ball, surrounded by ball bearings and an outer bearing race, mounted within a housing. Positioned in rows, the rotation of the recessed balls enables the easy movement of payloads travelling across them, and the units are commonly used in conveyor systems including transfer tables. As such, they can be used in manufacturing processes, as well as warehouse packaging and materials handling, through to airport baggage handling systems.

The new medium-duty range of ball transfer units is manufactured by a machine cutting process that retains strength and rigidity, enabling the units to transport higher weight loads. Versions include a carbon steel and zinc plated body with a Steel 9Cr18Mo ball, and the units can also operate in climates from -20°C to +60°C. A model with a 304 stainless steel body and ball also adds protection in moisture-prone environments or when facing exposure to more aggressive chemicals.

The new ball transfer units also extend the range of diameters to achieve more flexible conveyor system builds, from 31mm up to 54mm. The units are also low profile, starting from a height of just 21mm up to a maximum of 36.5mm.

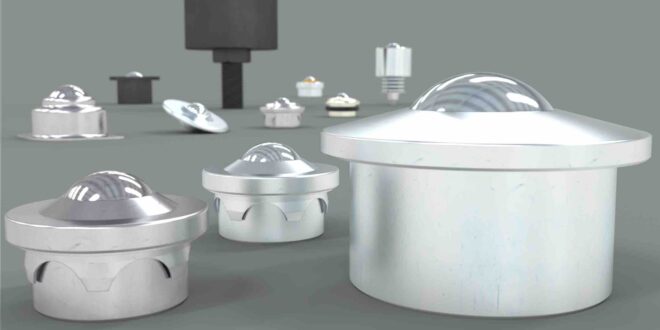

The medium-duty range extends WDS’ existing light-duty ball transfer units that are available in a variety of styles, sizes, materials, and mounting options. WDS also supplies heavy-duty versions with a load capacity up to 2,000kg. For flexible conveyor design requirements, WDS’ range of ball transfer units includes surface mount options with bolt-down rollers for secure fastening to flat surfaces. For low-profile design requirements, recessed-mount ball transfer units fit into pre-defined holes. Meanwhile, spring-loaded ball transfer units provide shock resistance for higher loads.

Full details of the new medium-duty range of ball transfer units, under product code WDS569, can be found on wdscomponents.com. Free CAD images download in a variety of formats are available online, as well as full specification, to enable fast and simple design integration.
