Impulse heat sealing

Impulse heat sealing, critical for ensuring package integrity in sectors such as medical devices, consumer goods, and engineered components, has progressed from traditional fixed power methods to sophisticated temperature-regulated solutions.

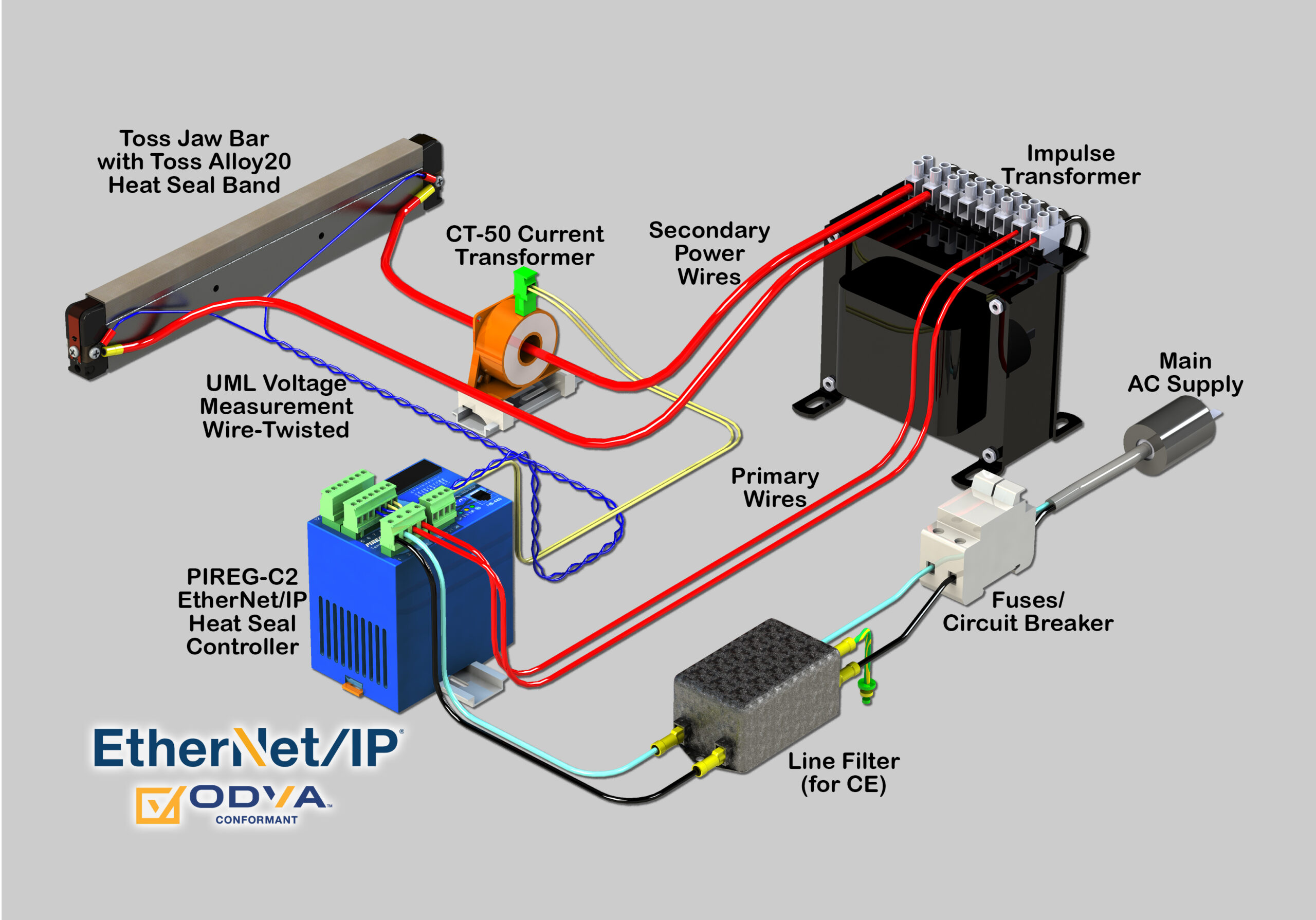

TOSS Technology‘s Optimum Sealing System employs Variable Resistance Control (VRC), using the heating element’s electrical resistance for real-time temperature feedback. This closed-loop system delivers repeatable and validatable seals, vital for compliance with standards like ISO 11607 and other industry requirements.

Notable technical advances include the Pronet Controller C2-210, enabling precise temperature regulation, programmable control, and seamless industrial network integration; and the PIREG-545, which ensures rapid response times, prevents temperature overshoot, and supports a broad range of polymeric films. The PIREG series controllers are available as in-cabinet DIN rail mounted devices or panel mount devices with a display to interface with the controller.

Various versions of different communication protocols such as an analog method, Ethernet, PROFINET, and EtherCAT to accommodate a broad range of systems. Together, these solutions, alongside other TOSS innovations, boost operational efficiency, extend equipment life, and deliver consistent seal integrity.
