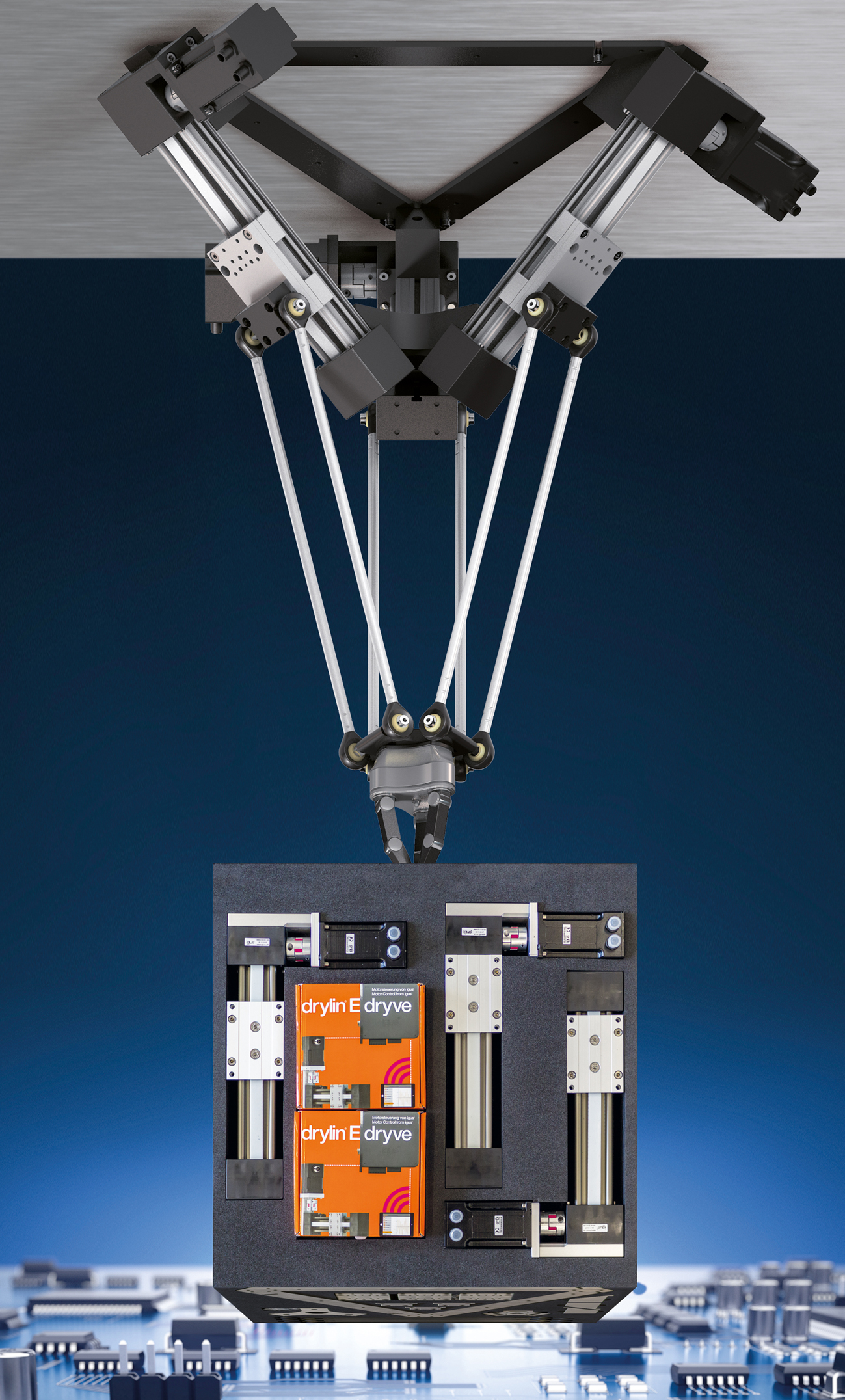

How fast does the drylin delta robot operate?

Based on three maintenance-free drylin ZLW toothed belt axes, the drylin delta robot is particularly suitable for simple assembly tasks, pick and place tasks, as well as applications in test and measurement.

HERE, we see the drylin delta robot in a PCB assembly application.

The three NEMA stepper motors and encoders driving the belt axes ensure a pick rate of at least 60 per minute with a precision of ±0.5 mm.



The complete system, which is available directly from stock as a kit or delivered pre-assembled ready to install, has an installation space of up to 420 mm in diameter.

Its maintenance-free belt drive units, lubrication-free link rods, encoders and stepper motors combine to create a lightweight design.

The typical ROI period for the drylin delta robot is estimated at just six months, this compares favourably to the industry’s rule-of-thumb target of two years.
